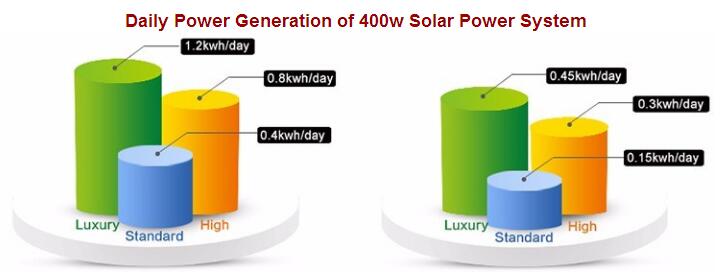

Remarks: Above power generation is only for your reference. We can not make a promise for that because the power generation will be different with different area and different situation of illumination.Please kindly note. |
Service Time | ||||
Model | Led Bulb(3W) | Laptop(50W) | TV(60W) | Fan(60W) |
XT-BP-SK400 | 130H | 8H | 7H | 7H |

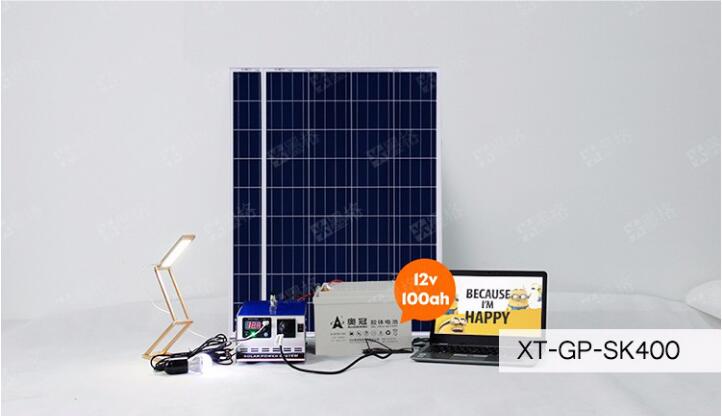

XT-GP-SK400 | 260H | 16H | 14H | 14H |

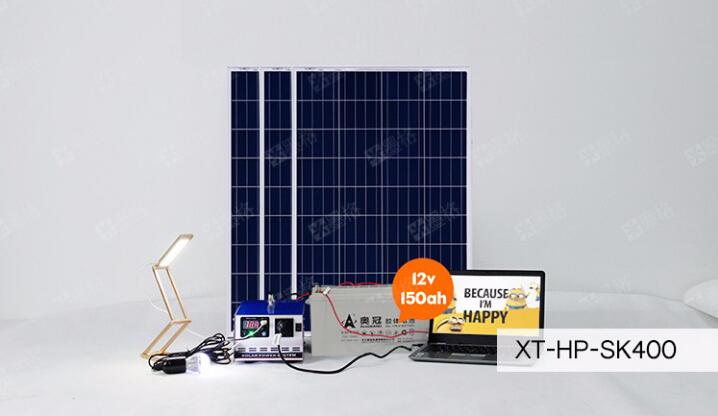

XT-HP-SK400 | 400H | 24H | 20H | 20H |
Model | Input Power | Output Power | Output Voltage | Output Frequency | Battery Capacity |
MG-BP-SK400 | 100w | 400w | 220V/110V | 50Hz/60Hz | 12v50ah |
MG-GP-SK400 | 200W | 400W | 220V/110V | 50Hz/60Hz | 12v100ah |
MG-HP-SK400 | 300w | 400w | 220V/110V | 50Hz/60Hz | 12v150ah |
Configuration List
Model | MG-BP-SK400 | MG-GP-SK400 | MG-HP-SK400 |
Solar Panel(100W) | 1 | 2 | 3 |
Controller & Inverter AIO(400W) | 1 | 1 | 1 |
Gel Battery | 12v50ah | 12v100ah | 12v150ah |
LED Bulb(3w) | 1 | 1 | 1 |
Transformers Lamp(3w) | 1 | 1 | 1 |
Connecting Cable / Fuse / User Manual |
